Wisit Lumchanao. “Development of embedded system for pH measurement in fish ponds and monitoring data via Internet of Things”. KasemBundit Engineering Journal(KBEJ), Vol.8, Special Issue May, pp.247-259, 2018.

ผู้วิจัย

Wisit Lumchanao

บทคัดย่อ

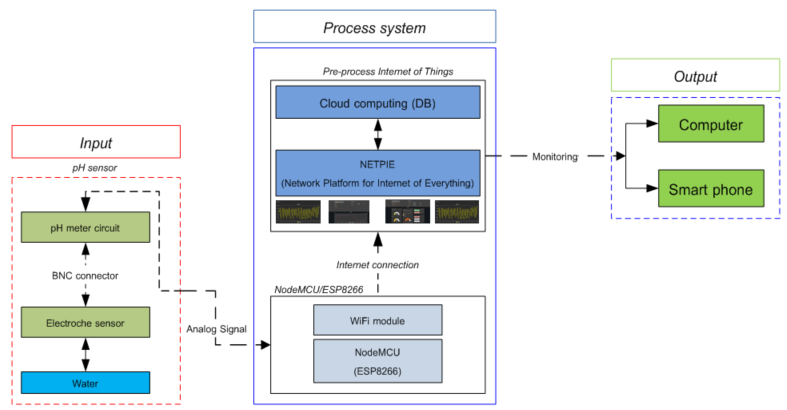

This paper presents the pH measurement system to construct a water spoilage prevention system for the fish culture in cement ponds, to reduce diseases in fish, and to reduce the problems of the death of fish. The objectives of this research were: 1) to design and construct a system for measuring pH values of water in the fish ponds via Internet of Things, and 2) to determine the efficiency of the pH measurement system. The study instruments were NodeMCU/ESP8266, pH electrode set and Netpie application. The results showed the efficiency of the pH measurement system starting from the first stage of water replacement in the cement ponds as follows: during day 1-15, the suitable pH value for normal living of freshwater fish was 6.002-8.489, and during day 16-19, the acidic value rose with pH 5.964-5.381. The results revealed that the system could display real-time pH values via Internet of Things using the Netpie application with Data Feed function.

บรรณานุกรม

[1] Jedsada A, Samatachai J, and Weerachai Y. (2015). Development of water quality monitoring system in white shrimp ponds. National Conference on Information Technology. Vol.7 : pp.177-181. [2] Aarti Rao J, Karishma K, Pankaja P, Kiran M, and Gauri S. (2017). Environmental Monitoring Using Wireless Sensor Networks (WSN) based on IOT. International Research Journal of Engineering and Technology. Vol.04. (Issue: 01) : pp.1371-1378. [3] Cloud Computing logical diagram. (2012). [Online]. Retrieved from https://techonomy.com/2012/08/do-you-get-the-cloud-or-do-you-fake-it/cloud-computing-diagram/. Accessed March 16, 2018 [4] pH Analog Meter Sensor Interface. [Online]. Retrieved from http://image.dfrobot.com/image/data/SEN0161/pH%20 meter%20V1.0%20SCH.pdf. Accessed March 10, 2018 [5] Sun A, Phelps T, Yao C, Venkatesh AG, Conrad D, Hall DA. (2017). Smartphone-Based pH Sensor for Home Monitoring of Pulmonary Exacerbations in Cystic Fibrosis. Sensors Journal by MDPI. Vol.17(6). [6] Analog Devices. (2013). Isolated Low Power pH Monitor with Temperature Compensation. [Online]. Retrieved from http://www.analog.com/media/en/reference-design-documentation/reference-designs/CN0326.pdf. Accessed February 1, 2018 [7] Texas Instruments. (2013). AN-1852 Designing With pH Electrodes. [Online]. Retrieved from http://www.ti.com/lit/an /snoa529a/snoa529a.pdf. Accessed February 5, 2018
